Magnetotherapy - BIOMEDICAL

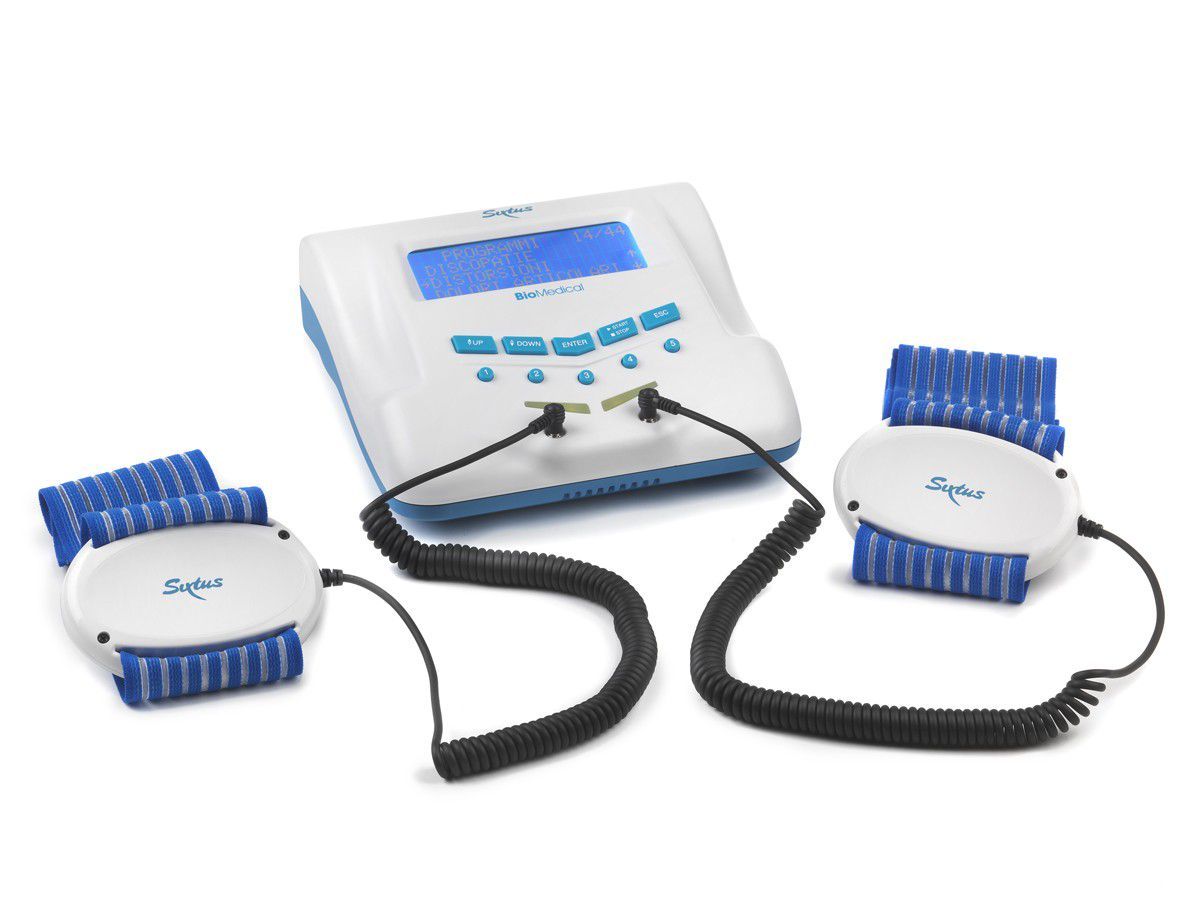

BIOMEDICAL is a magnetotherapy device that utilizes the induced effects on the human body by low-frequency magnetic fields for therapeutic purposes.

This device incorporates a square wave electric current generator, with a variable frequency between 2 Hz and 100 Hz, and variable pulse duration. The intensity of the pulsed magnetic field, ranging from 10 to 100 Gauss, is obtained through appropriate modulation of the implementation time of the circuit delivering the current to the applicators.

The rapid variation of the field produces electromotive forces in the patient, which induce stimulatory currents. The current is monitored by a security circuit managed by an electronic microcontroller, ensuring its accuracy.

BIOMEDICAL has 2 operating modes:

1. Manual
2. Predefined protocols Due to the keyboard capable of memorizing treatments, it is also possible to store up to five programs (free program or predefined programs), which can be quickly retrieved using the associated keys.

Technical Specifications:

• 6 selectable languages
• Power supply 230V~ / 50-60Hz
• Maximum absorbed power 22VA
• Interior fuses type T500mA (delayed) 5x20
• Output frequency 2 → 100 Hz
• Maximum intensity 100 Gauss (10mT)
• Night program frequency from 1000 to 5000 Hz (step 500)
• Electrical safety class (IEC 60601-1) II BF
• Medical device class (MDD 93/42/EC) IIa
• Protection level Device IP20
• Applicators IP20

Supplied with:

• 1 power cable 2 m
• 2 transducers/applicators
• 1 elastic band with Velcro 8x60 cm
• 1 elastic band with Velcro 8x100 cm
• 1 ABS housing

Available upon request:

• Pillow
• Kidney belt
• Elastic bandage for leg
• Elastic bandage for knee / elbow / shoulder
• Elastic bandage for waist
• Glove
• Mat
• Pillowcase
