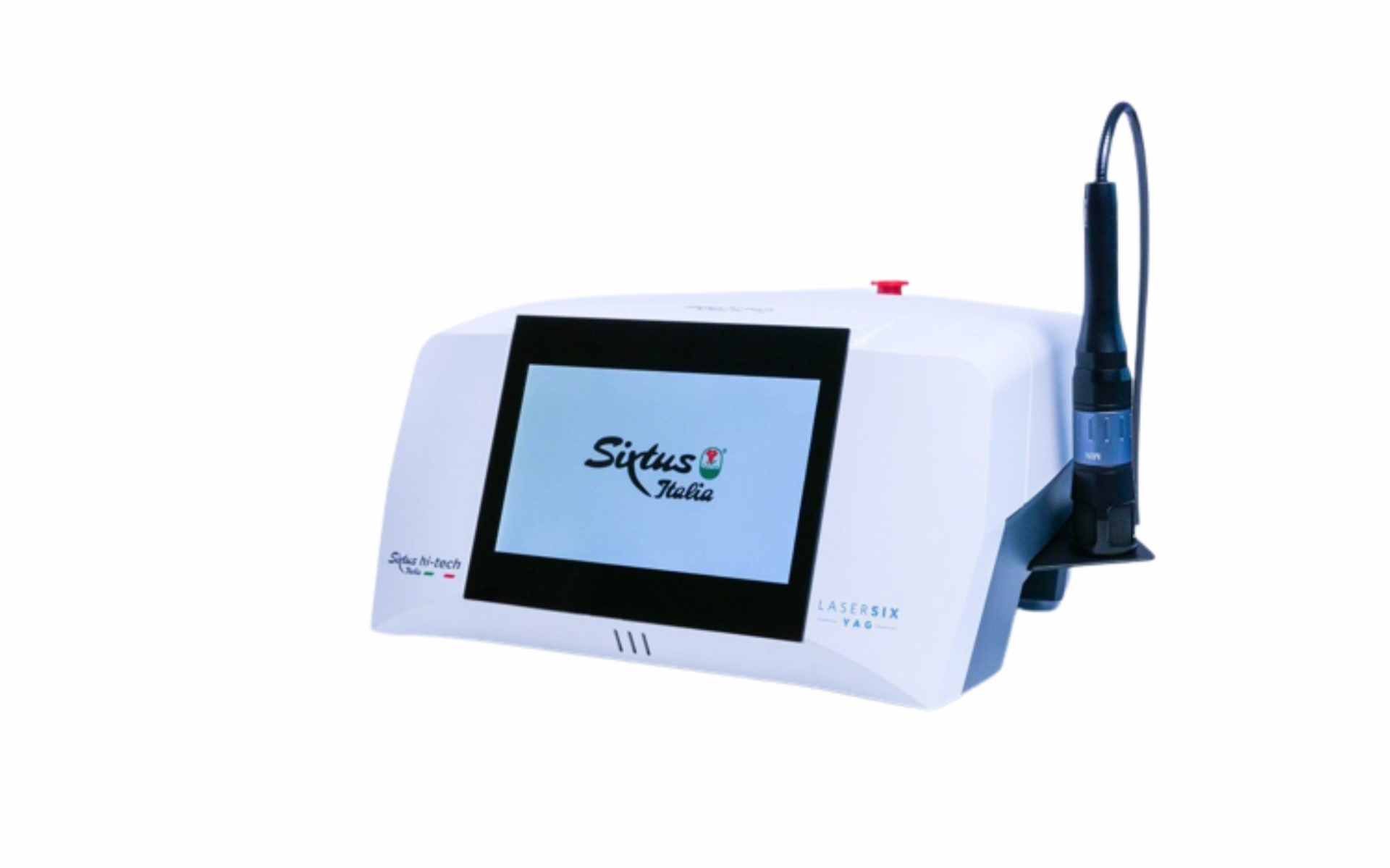

LaserSix Yag

PRODUCT DETAILS

Lasersix Yag is a high-power laser therapy device with a wavelength of 1064 nm.

Lasersix Yag allows you to work in both continuous and pulsed modes.

The continuous emission mode is suitable for pathologies that require deep treatment, while the pulsed emission mode is suitable for acute pathologies.

Lasersix Yag is equipped with a handle that allows you to defocus the beam, giving you the ability to treat tissue areas with an extension ranging from 2 mm to a diameter of 25 mm.

There are 3 different operating modes:

Manual mode

You can set: the number of phases, intensity, continuous or pulsed delivery mode, frequency, duty cycle, and total treatment duration. Based on the specified parameters, the software calculates and displays the amount of energy in joules that needs to be delivered through the treatment.

Preset protocols

You can choose from therapeutic programs related to 118 different pathologies, always having the possibility to make adjustments during the treatment.

Custom programs

SPECIFICATIONS:

Exclusive design New architecture software 7" capacitive touchscreen: higher speed and accuracy 2 mm tempered glass screen: higher resistance and visibility Updates via USB port Security system with a security slot Selectable among 6 languages

TECHNICAL SPECIFICATIONS:

HPLT High-Power Laser Therapy Power: up to 12 W

Wavelength: 1064 nm

Mode: Pulsed - Continuous

Operating modes: Manual mode, Preset protocols, Custom programs Preset protocols: 70

Laser class: 4

Light guide: 650 nm

Power supply: 90-240 Vac / 50-60 Hz

Power absorption: 100 VA

Class: II b CE 0051

PACKAGE INCLUDES:

1 x 2 m power cable

1 x cw 1064 nm laser handle

1 x spacer for the laser handle

1 x footswitch

1 x footswitch protection

1 x laser protection goggles for the operator

1 x laser protection goggles for the patient

Optional accessories:

Trolley with handle support

Air travel carrying case
