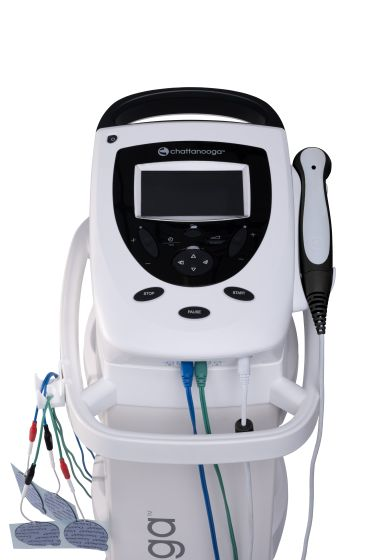

Device that combines electrotherapy and ultrasound in a single system, offering two channels for optimal versatility. Designed to fit your needs, it can be used with or without the optional cart, providing flexibility in any treatment environment.
With the Intelect Transport 2 Combo, you have access to 14 waveforms for electrotherapy treatments, ensuring a wide range of options to address various conditions and patient needs. Powerful, efficient and easy to use, it is an essential tool for professionals.
INDICATIONS OF ELECTROTHERAPY:
TENS:
- Symptomatic relief of acute and chronic pain associated with musculoskeletal conditions.1
- Management and relief of postoperative pain.1
EENM:
- Musculoskeletal disorders that enable: Muscular reeducation2 and Maintenance or increase in range of movement.2
INDICATIONS OF ULTRASOUNDS:
- Musculoskeletal conditions; facilitate pain relief in the affected area.3,4
- Effective Pain Relief: Provides symptomatic relief for both acute and chronic pain associated with various musculoskeletal conditions, as well as postoperative pain.
- Accurate Detection and Monitoring: Improves treatment efficiency by ensuring that the patient receives the ultrasound energy intended for optimal recovery.
- Patented VMS Waveform: Chattanooga's VMS waveform allows for more intense muscle contractions with less neural fatigue, improving patient comfort during treatment.
- Extended Battery Life: Eliminates the inconvenience of extra cables and provides the freedom of all-day use in portable applications.
- Intuitive Color Interface: A high-resolution screen with clear and simple menus offers real-time information about the progress of the treatment.
- Personalized Memory: Allows you to save up to 15 personalized protocols for efficient and convenient management of treatments.
- Improved Response and Detection: A faster refresh rate and a more responsive keyboard ensure an optimal user experience for both therapists and patients, while ultrasound coupling detection ensures precise and effective application of the treatment.
Includes:
- Stim CH1/2 cable kit (combo devices only)
- Dura-Stick 5cm round electrodes (10-pack)
- 6x8 cm Carbon Electrodes (QTY 4)
- Power cord
- Ultrasound applicator 5cm²
- Nylatex wrap (2 per pack)
Technical characteristics:
- Frequency: 1 MHz; 3.3MHz
- Duty cycles: 10%, 20%. 50%, Continuous
- Pulse repetition frequency: 100 Hz
- Pulse duration: 1 - 5 ms - Max. (ON): 5 ms -
- Min. (OFF): 5 ms
| Frequency of the ultrasound applicator |
2cm² 1MHZ
|
2cm² 3.3MHZ |
5cm² 1MHZ |
5cm² 3.3MHZ |
10cm² 1MHZ |
10cm² 3.3MHZ |
| Arie de radiație efectivă (ERA) INTL (CM²) |
1.5 |
1.5 |
3.0 |
3.0 |
5.8 |
5.8 |
| Power maximum output in continuous mode |
3W |
3W |
6W |
6W |
12.7W |
3W/cm² |
| Power maximum output in pulsed mode |
4.5W |
4.5W |
9W |
9W |
17.4W |
13.9W |
| Intensity maximum in continuous mode |
2W/cm² |
2W/cm² |
2W/cm² |
2W/cm² |
2.2W/cm² |
1.2W/cm² |
| Intensity maximum in pulsed mode |
3W/cm² |
3W/cm² |
3W/cm² |
3W/cm² |
3W/cm² |
3W/cm² |
Electrostimulation Characteristics:
- Unless otherwise specified, the accuracy of electrotherapy controls is ±20%
- Load impedance: 500 - 1000 Ohm
- DC = constant current, load impedance effect on voltage
- CV = constant voltage, effect of load impedance on current
Waveforms:
-VMS
- Microcurrent
- Galvanic
- Russian
- 4-pole interferential
- TENS – Asymmetric biphasic
- Pulsed triangular single phase
- Diadynamics
- 2 pole interference
- TENS – Symmetrical biphasic
- Single-phase rectangular pulsed
- High voltage pulsed current
- Continuous galvanic
- Trabert
General technical specifications
- Network electric: 100-240 VAC, 50/60 Hz, 1.0 A
- Weight: 1.9 kg
- Weight shipping: 3.9kg
- Dimensions: 13.6" long x 9.8" wide wide x 4.7" high (34.6cm x 25cm x 12cm)
- Class electrical safety: Class 1, Type B
- Tests security: IEC 60601-1, ISO 10993-1, IEC 60601-2-5, IEC 60601-1-2, IEC 60601-2-10, IEC 60601-1-6, IEC 62366-1, IEC 62304, IEC 62133, ISO 14971
